Water Butterfly valves Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V, ATU AFC2000
Water Butterfly valves Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V, ATU AFC2000 - DN15 / 10 bar est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Livraison et expédition
Livraison et expédition
Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.
Description
Description
The butterfly valve is designed to be used as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk 90°. Opening is done by turning the handle counterclockwise, closing - clockwise.
Elephant pneumatic rotary actuators double-acting PA-DA-XXX and pneumatic rotary actuators with returnspring PA-SA-XXX are designed to automate the process of controlling industrial valves at a maximum torque of up to 2128 Nm.
The pneumatic distributor is used to change the direction, start, stop compressed air flows in a pneumatic system depending on the external control action.
The air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain pressure at a given level, and supply lubricant from the reservoir to the compressed air flow to the elements of the pneumatic system.

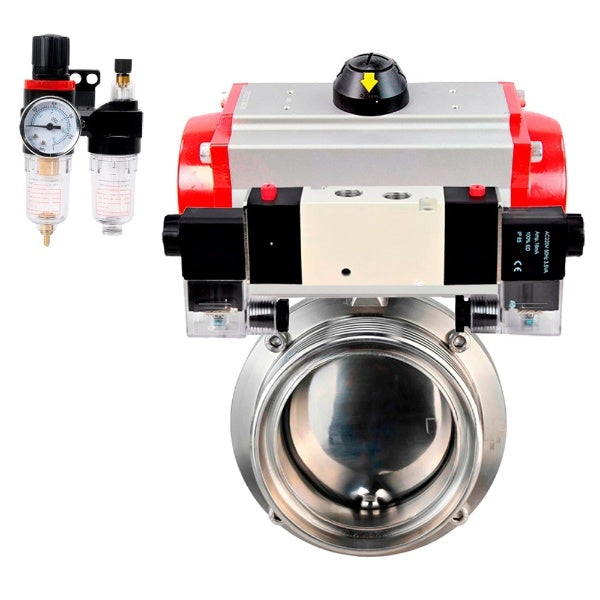

Technical characteristics of the Elephant WBV3131S-2W-T-H, body material - stainless steel AISI 304, seal - Silicon, with pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V, ATU AFC2000
| Characteristic | Meaning |
| Shutter type | rotary disc |
| Diameter | 15-100 mm |
| Nominal pressure | 10 bar |
| Working environment temperature | from -50 to +180°C |
| Application | Food industry |
| Connection type | coupling (threaded) |
| Control type | pneumatic drive |
| Sealing class | A |
| Guarantee | 12 months |
Rotary pneumatic actuators Elephant double acting PA-DA-XXX
Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA-XXX:
| Characteristic | Meaning |
| Pneumatic drive type | double acting |
| Drive torque | 14-30 Nm |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working environment | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ±5° for rotation at 0° and 90° |
| Air supply | G1/4" |
| Working environment temperature | from –20 to +80 °C |
Pneumatic distributors Elephant 4V320-08 220V
Technical characteristics of pneumatic distributors Elephant 4V320-08 220V:
| Characteristic | Meaning |
| Model of pneumatic distributor | 4V320-08 220V |
| Supply voltage | 220V |
| Type of pneumatic distributor | spool valve |
| Nominal pressure | 12 bar |
| Working pressure | 1.5...1.8 bar |
| Ambient temperature | from -5 to +50 ⁰C |
| Working environment | purified air (filtration fineness 40 microns) |
| Response frequency | 5 cycles/s |
| Degree of protection | IP65 |
| Control | two-way electromagnetic |
| Body material | aluminum alloy and technopolymer |
| Response time | 0.05 sec |
| Diameter of working channels | 1/4" |
Air preparation units Elephant AFC2000
Technical characteristics of air preparation units Elephant AFC2000:
| Characteristic | Meaning |
| Working pressure | 8 bar |
| Maximum pressure | 10 bar |
| Adjustable pressure range | 0.5...9 bar |
| Destruction pressure | 15 bar |
| Operating temperature | from -5°C to +60°C |
| Air connection | 1/4" |
| Size of filtered particles | 40 microns |
| Oil viscosity | ISO VG 32 |
Sketch of dimensions of butterfly valves Elephant WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Overall and installation dimensions of the Elephant WBV3131S-2W-CH clamp-type butterfly valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| Diameter | D, mm | G, mm | D1, mm | A, mm | H, mm | J, mm | K, mm |
| DN15 | 15 | Rd34x1/8 | 78 | 66 | 86 | 126 | 8x8 |
| DN20 | 19 | Rd44x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN25 | 25 | Rd52x1/6 | 78 | 66 | 86 | 126 | 8x8 |
| DN32 | 31 | Rd58x1/6 | 86 | 70 | 90 | 126 | 8x8 |
| DN40 | 37 | Rd65x1/6 | 90 | 74 | 92 | 126 | 8x8 |
| DN50 | 49 | Rd78x1/6 | 106 | 76 | 104 | 133 | 10x10 |
| DN65 | 66 | Rd95x1/6 | 124 | 80 | 113 | 144 | 10x10 |
| DN80 | 81 | Rd110x1/4 | 139 | 84 | 123.5 | 160 | 10x10 |
| DN100 | 100 | Rd130x1/4 | 159 | 104 | 133.5 | 160 | 10x10 |
Sketch of the dimensions of rotary pneumatic actuators Elephant with return springs PA-SA-XXX
Overall and installation dimensions of rotary pneumatic actuators Elephant with return springs PA-SA-XXX:
| Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | M, mm | N, mm | O, mm | P, mm |
| PA-DA(SA)-052 | 108 | 153 | 30 | 41 | 72 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-065 | 125 | 174 | 36 | 46 | 89 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-083 | 152 | 216 | 46 | 55 | 109 | 26 | 15 | 80 | 30 | 34 | 20 |
| PA-DA(SA)-105 | 189 | 279 | 55 | 64 | 134 | 26 | 25 | 80 | 30 | 41 | 20 |
| PA-DA(SA)-130 | 210 | 308 | 67.5 | 70 | 157 | 36 | 25 | 80 | 30 | 62 | 30 |
| PA-DA(SA)-140 | 268 | 405 | 76 | 77 | 174 | 36 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-160 | 310 | 465 | 87.5 | 87.5 | 199 | 38 | 30 | 130 | 30 | 62 | 30 |
| PA-DA(SA)-210 | 390 | 542 | 113 | 113 | 257 | 38 | 40 | 130 | 30 | 79 | 30 |
| PA-DA(SA)-270 | 510 | 722 | 146 | 146 | 333 | 38 | 52 | 130 | 30 | 79 | 30 |
Sketch of dimensions of pneumatic distributors Elephant 4V320-08 220V
Overall and installation dimensions of pneumatic distributors Elephant 4V320-08 220V:
| A, mm | 71.9 |
| B, mm | 45 |
| C, mm | 94.4 |
| D, mm | 27 |
| E, mm | 69 |
| F, mm | 40 |
| H, mm | 82.4 |
| I, mm | 24 |
| K, mm | 40 |
| L, mm | 188.8 |
| M, mm | 69.4 |
| N, mm | 50 |
| O, mm | 83.4 |
| P, mm | 22 |
| S, mm | 20 |
| T, mm | 6.5 |
| U, mm | 2.4 |
Sketch of dimensions of air preparation units Elephant AFC2000
Overall and installation dimensions of air preparation units Elephant AFC2000:
| A, mm | 162 |
| B, mm | 88 |
| C, mm | 139 |
| D, mm | 31 |
| E, mm | 53.5 |
| F, mm | 12 |
| G, mm | 8 |
| H, mm | 7 |
| I, mm | 13.3 |
| J, mm | 39 |
| K, mm | 5 |
| L, mm | 40 |
| M, mm | 32 |
| N, mm | 53 |
| O, mm | 29 |
| P, mm | 6 |
| R, mm | 41.5 |
Sketch of materials of butterfly valves Elephant WBV3131S-2W-CH DN15-100 PN10 food grade stainless steel 304, Silicon
Materials of parts of Elephant WBV3131S-2W-CH rotary clamp disc valves DN15-100 PN10 food grade stainless steel 304, Silicon:
| No. | Part name | Material |
| 1 | Frame | stainless steel 304 |
| 2 | Pivot knot | stainless steel 304 |
| 3 | Disk | stainless steel 304 |
| 4 | Saddle seal | Silicon |
| 5 | screw | steel A2~70 |
| 6 | Bolt | steel A2~70 |
| 7 | Cork | ABS plastic |
Sketch of rotary pneumatic actuators Elephant with return springs PA-SA-XXX
Design of rotary pneumatic actuators Elephant with return springs PA-SA-XXX:
| No. | Name | Quantity | Material |
| 1 | Frame | 1 | extruded aluminum (hard anodized finish) |
| 2 | Side plugs | 2 | cast aluminum |
| 3 | Gear | 1 | stainless steel (nickel plated) |
| 4 | Piston | 2 | steel/aluminium (oxidation/galvanized) |
| 5 | Plugs | 8 | stainless steel |
| 6 | Piston ring | 2 | NBR |
| 7 | Springs | 0-12 | spring steel (epoxy coating) |
| 8 | Piston bearing | 2 | engineering plastic |
| 9 | Piston ring | 2 | NBR |
| 10 | Plug | 2 | NBR |
| 11 | Thrust ring | 2 | engineering plastic |
| 12 | Ring | 1 | engineering plastic |
| 13 | Washer | 1 | stainless steel |
| 14 | Spring clamp | 2 | stainless steel |
| 15 | Indicator | 1 | plastic |
| 16 | Indicator housing | 1 | plastic |
| 17 | Bearing | 1 | engineering plastic |
| 18 | Cam | 1 | steel (oxidized/galvanized) |
| 19 | Bearing | 1 | NBR |
| 20 | Bearing | 1 | engineering plastic |
| 21 | Bearing | 1 | engineering plastic |
| 22 | Sealing ring | 2 | NBR |
| 23 | Sealing ring | 2 | NBR |
| 24 | Bearing | 2 | stainless steel |
| 25 | Adjusting nut | 2 | stainless steel |
| 26 | Adjustment screw | 2 | stainless steel |
| 27 | Sleeve | 2 | aluminum |
