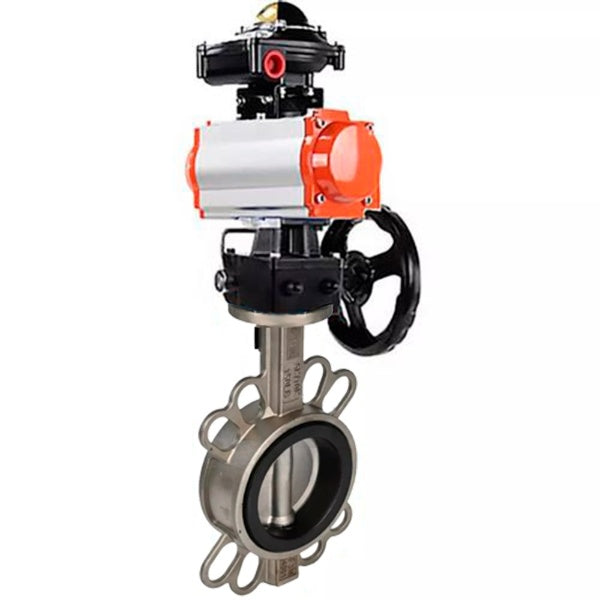

Vanne papillon d'eau Elephant WBV3131N-2W-Fb-H, matériau du corps - Acier inoxydable AISI 304, matériau du disque - Acier inoxydable AISI 304, joint - NBR, actionneur pneumatique PA-DA double action, BKV APL-510N EX, volant MON

Butterfly valves are designed for use as shut-off or regulating valves for controlling flows in heat supply systems, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

Operating principle: The valves are opened and closed by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.

PA-DA-XXX double-acting pneumatic rotary actuators and PA-SA-XXX double-acting pneumatic rotary actuators with return spring are designed for automation of industrial valve control with maximum torque up to 2128 Nm.

The limit switch unit is an electrotechnical device designed for opening and closing of the working circuit and for visualization of the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Thanks to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

The HDM worm gear manual doubleturn actuator with reduction gearbox allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

Technical parameters of Water Butterfly Valve Elephant WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON:

Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON

Dimensions and dimensions of butterfly valves Elephant WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON:

Sketch Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON

Materials of butterfly valves Elephant WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON:

Sketch of parts and materials Butterfly valves WBV3131N-2W-Fb-H, body material - Stainless steel AISI 304, disk material - Stainless steel AISI 304, seal - NBR, pneumatic actuator PA-DA double action, LSU APL-510N EX, handwheel MON

Technical data of PA-DA pneumatic actuators:

Parts and material sketch of the PA-DA pneumatic actuator

Technical parameters of the handwheel MON:

Manual doubler MON

Dimensions and dimensions of the handwheel MON:

Sketch of dimensions and dimensions of the MON handwheel MON

MON handwheel materials:

Materials of the handwheel

Characteristics of limit switch unit APL-510N-EX:
