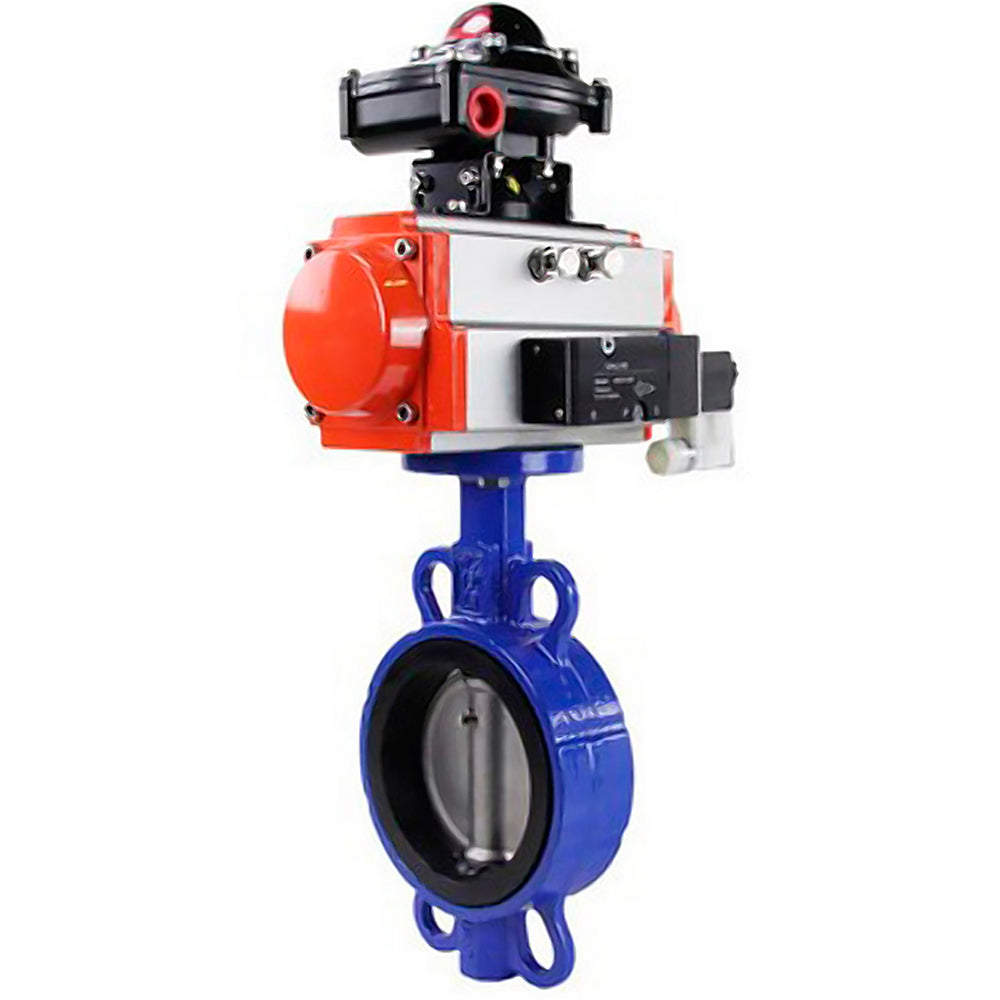

Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, actionneur pneumatique PA-SA avec ressorts de rappel, 4M310-08 24V, BKV APL-510N EX
Vanne papillon d'eau Elephant WBV1632E-2W-Fb-H, matériau du corps - fonte QT450, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, actionneur pneumatique PA-SA avec ressorts de rappel, 4M310-08 24V, BKV APL-510N EX - DN100 / 16 bars est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Livraison et expédition
Livraison et expédition
Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.
Description
Description
The WBV1632E-2W-Fb butterfly valve is designed for use as a shut-off or control valve to control flows in heat supply systems, water supply, in technological processes in the food, chemical, oil and gas, pulp and paper and other industries. Operating principle: The valves open and close by turning the disk by 90°. Opening is performed by turning the handle counterclockwise, closing - clockwise.
PA-SA pneumatic actuators are designed to automate the process of controlling industrial shut-off valves - valves, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
Pneumatic distributors 4M310-08 24V 24V are used for control in pneumatic systems with a NAMUR mating surface, for installing distributors through through holes in the housing.
The APL-510N EX limit switch unit is designed for visual and electrical signaling of the end positions of the valve shut-off element. It is installed on top of the surface of the pneumatic drive and connected to the drive shaft - DIN standard. In a sealed box, as a rule, there are two sensors that track the position of the drive shaft and signal in extreme positions. Visual indication of the position can be observed on the body of the unit there is a 3D visual indicator RED - CLOSED and YELLOW - OPEN.
Technical characteristics of butterfly valves Elephant WBV1632E-2W-Fb-H, body material - cast iron QT450, disk material - stainless steel AISI 316L, seal - EPDM, pneumatic actuator PA-SA with return springs, 4M310-08 24V, LSU APL-510N EX
| Parameter | Meaning |
| Nominal diameter DN, mm | 40 - 300 |
| Nominal pressure PN, bar | 16 |
| Temperature of working environment t, ⁰C | from -20 to +110 |
| Working environment |
water, steam, aggressive environments and liquids with abrasive content (cement, sand, alumina, etc.) |
| Direction of flow | bilateral |
| Control type |
DN40-200 - handle DN250-300 - reducer |
| Connection to the pipeline | interflange |
| Body material | cast iron QT450 |
| Seal material | EPDM with wear-resistant coating |
| Service life, years | 10 |
Sketch of parts of rotary disc valves Elephant WBV1132N-2W-Fb DN40-300 PN16
General details and materials of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16
| No. | Part name | Material |
| 1 | Frame | cast iron QT450 |
| 2 | Disk | Stainless steel 316L |
| 3 | Saddle seal |
EPDM + wear-resistant material (siliclone+graphite) |
| 4 | Stock | steel 2Cr13 |
Sketch of dimensions of butterfly valves Elephant WBV1132N-2W-Fb DN40-300 PN16
General weight and dimensions of the Elephant WBV1132N-2W-Fb butterfly valves DN40-300 PN16
| DN | L | H | H1 | D2 | D1 | n.d. |
| DN40 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
| DN50 | 43 | 147 | 70 | 92 | 125 | 4- Ø23 |
| DN65 | 46 | 155 | 76 | 110 | 145 | 4- Ø23 |
| DN80 | 46 | 164 | 92 | 121 | 160 | 8- Ø20 |
| DN100 | 52 | 175 | 106 | 153 | 180 | 4- Ø23 |
| DN125 | 56 | 194 | 119 | 176 | 210 | 4- Ø23 |
| DN150 | 56 | 206 | 132 | 207 | 240 | 4- Ø25 |
| DN200 | 60 | 237 | 162 | 259 | 295 | 4- Ø25 |
| DN250 | 68 | 282 | 200 | 316 | 355 | 4-Ø28 |
| DN300 | 78 | 311 | 225 | 370 | 410 | 4-Ø28 |
Sketch of pneumatic actuator parts Elephant PA-SA
General parts and materials of pneumatic actuators Elephant PA-SA
| No. | Detail | Quantity | Material |
| 1 | Frame | 1 | extruded aluminum |
| 2 | Side plugs | 2 | cast aluminum |
| 3 | Gear | 1 | stainless steel |
| 4 | Piston | 2 | steel/aluminum |
| 5 | Plugs | 8 | stainless steel |
| 6 | Piston ring | 2 | NBR |
| 7 | Springs | 0-12 | spring steel |
| 8 | Piston bearing | 2 | engineering plastic |
| 9 | Piston ring | 2 | NBR |
| 10 | Plug | 2 | NBR |
| 11 | Thrust ring | 2 | engineering plastic |
| 12 | Ring | 1 | engineering plastic |
| 13 | Washer | 1 | stainless steel |
| 14 | Spring clamp | 2 | stainless steel |
| 15 | Indicator | 1 | plastic |
| 16 | Indicator housing | 1 | plastic |
| 17 | Bearing | 1 | engineering plastic |
| 18 | Cam | 1 | steel |
| 19 | Bearing | 1 | NBR |
| 20 | Bearing | 1 | engineering plastic |
| 21 | Bearing | 1 | engineering plastic |
| 22 | Sealing ring | 2 | NBR |
| 23 | Sealing ring | 2 | NBR |
| 24 | Bearing | 2 | stainless steel |
| 25 | Adjusting nut | 2 | stainless steel |
| 26 | Adjustment screw | 2 | stainless steel |
| 27 | Sleeve | 2 | aluminum |
Sketch of dimensions of pneumatic actuators Elephant PA-SA
General weight and dimensions parameters of pneumatic actuators Elephant PA-SA
| Model | A, mm | B, mm | C, mm | G, mm | d1 | d2 | J | TO | Mmm | N, mm | Weight, kg |
| Elephant PA-SA-052 | 153 | 71 | 98 | 15 | F03 | F05 | 4-M5x8 | 4-M6x10 | 80 | 30 | 1.3 |
| Elephant PA-SA-065 | 174 | 82 | 115 | 15 | F05 | F07 | 4-M6x10 | 4-M8x12 | 80 | 30 | 2.1 |
| Elephant PA-SA-083 | 216 | 101 | 135 | 15 | F05 | F07 | 4-M6x10 | 4-M8x12 | 80 | 30 | 3.7 |
| Elephant PA-SA-105 | 279 | 119 | 160 | 25 | F07 | F10 | 4-M8x12 | 4-M10x16 | 80 | 30 | 7.1 |
| Elephant PA-SA-130 | 308 | 137.5 | 193 | 25 | F07 | F10 | 4-M8x12 | 4-M10x16 | 80 | 30 | 10.9 |
| Elephant PA-SA-140 | 405 | 153 | 210 | 30 | F10 | F12 | 4-M10x16 | 4-M12x20 | 130 | 30 | 15.7 |
| Elephant PA-SA-160 | 465 | 175 | 237 | 30 | F10 | F12 | 4-M10x16 | 4-M12x20 | 130 | 30 | 23.6 |
| Elephant PA-SA-210 | 542 | 226 | 295 | 40 | / | F14 | / | 4-M12x20 | 130 | 30 | 46.6 |
| Elephant PA-SA-270 | 722 | 292 | 371 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 98.3 |
| Elephant PA-SA-300 | 825 | 335 | 392 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 143 |
| Elephant PA-SA-350 | 866 | 385 | 448 | 52 | / | F16 | / | 4-M20x24 | 130 | 30 | 188 |
Technical characteristics of the pneumatic distributor 4V320-08 24V 24V
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Limit Switch Block Elephant APL-510N EX
Characteristics of the limit switch unit Elephant APL-510N EX
| Parameter | Meaning |
| Frame |
Weatherproof IP67/ NEMA4 4X,7,9 Explosion Proof E EX d IIC T6 |
| Compatible devices |
- quarter-turn pneumatic actuators; - any actuators with a shaft rotation of 90° |
| Full rotation angle | 90° |
| Cable entries | 2 x NPT 3/4” |
| Electrical connection | screw clamp terminals 8 points (0.08 – 2.5) mm2 |
| Cable entry thread | 2 x NPT 3/4” |
| Visual indicator type | two-color hemisphere: OPEN - yellow CLOSED - red |
| Switches/sensors | two mechanical switches two proximity sensors |
| Nominal voltage, V | 250 |
| Rated current, A | 16 |
| Permissible ambient temperature, °C | from -20 to +66 |
| Average resource, cycles | 10,000,000 |
| Weight, kg | 1.8 |
Avis (0)
Avis (0)
Documentation
Documentation
Limit switch unit ELEPHANT APL-510N EX explosion-proof
Pneumatic valve ELEPHANT 4V320-8 or 10 AC220V
Pneumatic valve ELEPHANT 4M310-08 spool type
Butterfly valve for abrasive media Elephant WBV1632E-2W-Fb-H DN40-200 16 bar cast iron interflanged with handle
Pneumatic rotary actuator ELEPHANT PA-x-x double-acting and with return springs
