Vanne papillon d'eau Elephant WBV1432E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU : D050-36296

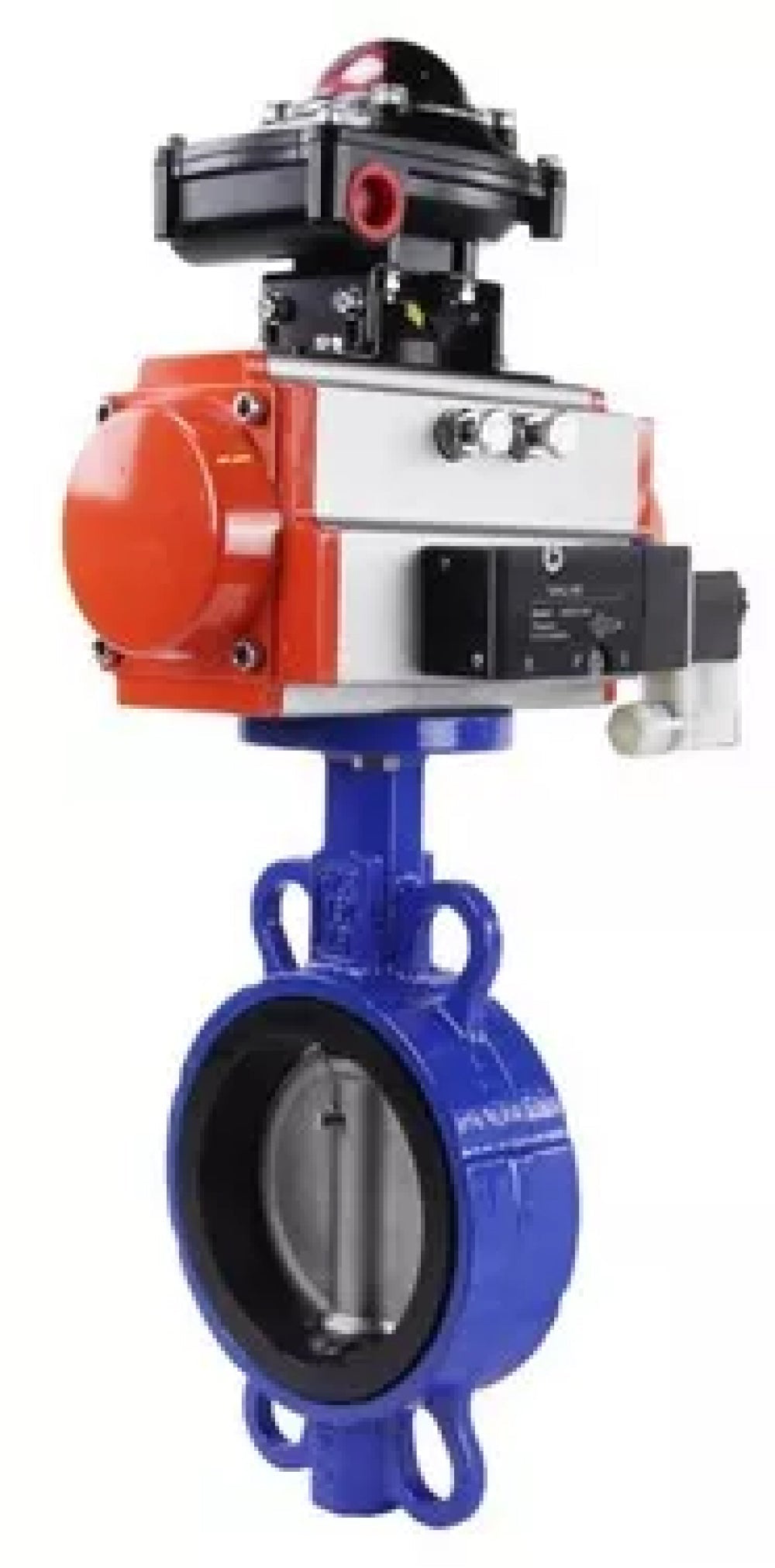

Vanne papillon d'eau Elephant WBV1432E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 24V, BKV APL-510N-EX

€302,11
Taxes incluses Frais de livraison calculés lors du paiement.

Vanne papillon d'eau Elephant WBV1432E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - acier inoxydable AISI 316L, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 24V, BKV APL-510N-EX - DN40 / 16 bars est en rupture de stock et sera expédié dès qu’il sera de retour en stock.

Livraison et expédition

Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.

Si vous avez des questions sur nos produits, nos options de livraison ou toute autre chose, n'hésitez pas à nous contacter.

Description

Butterfly valve model WBV1432E-2W-Fb PA-DA 4M310-08 APL-510N-EX 4M310-08 24V is designed for use as shut-off or regulating valves to control flows in heating systems, water supply, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-DA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 24 V are used for control in pneumatic systems having NAMUR docking surface to install the actuators through through holes in the housing.

The APL-510N-EX limit switch box is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it becomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.





Technical parameters of Elephant WBV1432E-2W-Fb-H butterfly valves, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX:

Nominal diameter DN, mm 40 - 300
Working pressure PN, bar 16
Working medium temperature t, ⁰C -20 to +90
Working medium water, mineral oils, hydrocarbons, oils, fats
Flow direction double-sided
Connection to pipeline interflanged
Body material cast iron GGG50

Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX





Dimensions and dimensions of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX:

DN A B C ØD d G CH (rod)
mm
40 105 55 33 75 10 30 9x9
50 161 80 43 84.5 10 30 9x9
65 175 89 45 104.5 10 30 9x9
80 181 95 45 123.5 10 30 9x9
100 200 114 52 139.5 10 30 11x11
125 213 127 55 169.5 10 30 14x14
150 226 139 55 196 10 30 14x14
200 260 175 60 247 12 30 17х17
250 292 203 68 304 12 40 22х22
300 337 242 78 358 12 40 22х22

Sketch Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX





Materials of butterfly valves Elephant WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX:

№ Name Material
1 Body Cast iron GGG50
2 Disk 316L steel
3 Seat seal EPDM
4 Upper stem 316L steel
5 Lower stem 316L steel
6, 11 Retaining ring AISI 201 steel
7 Duster NBR
8 Stem gasket NBR
9 Shaft gasket AISI 201 steel
10 Plug plastic

Sketch of parts and materials Butterfly valves WBV1432E-2W-Fb-H, body material - cast iron GGG50, disk material - stainless steel AISI 316L, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 24V, LSU APL-510N-EX





Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic valve 4m310-08 24V:

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1,5...8
Working medium filtered compressed air
Ambient temperature t, ⁰C +5 to +50
Response frequency 5 cycles/s
Manual duplication is
Degree of protection IP 65
Mounting through holes in the housing
Enclosure material anodized aluminum
Response time 0.05 sec.





Characteristics of limit switch unit APL-510N-EX:

Parameter Significance
Enclosure all-weather IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices quarter-turn pneumatic actuators;
- any actuators with shaft rotation by 90
Full rotation angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection screw terminals 8 points (0.08 - 2.5) mm2
Cable gland thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8

Avis (0)

Documentation
nullLimit switch unit ELEPHANT APL-510N EX explosion-proof
nullPneumatic valve ELEPHANT 4M310-08 spool type
nullButterfly valve Elephant WBV1432E-2W-Fb-H

Paiement et sécurité

Moyens de paiement

    Vos informations de paiement sont gérées de manière sécurisée. Nous ne stockons ni ne pouvons récupérer votre numéro de carte bancaire.

    Variantes disponibles

    SKU Taille de la connexionPressionPrix DisponibilitéQuantité Ajouter au panier
    D050-36296DN4016 bars €302,11 0 En stock
    D050-36297DN5016 bars €318,76 Épuisé
    D050-36298DN6516 bars €324,72 Épuisé
    D050-36299DN8016 bars €333,81 Épuisé
    D050-36300DN10016 bars €398,37 Épuisé
    D050-36301DN12516 bars €436,40 Épuisé
    D050-36302DN15016 bars €489,65 Épuisé
    D050-36303DN20016 bars €676,20 Épuisé
    D050-36304DN25016 bars €885,41 Épuisé
    D050-36305DN30016 bars €1.089,93 Épuisé
