Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fo – Valve Elephant
Elephant  |  SKU : D050-39085

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 220V, volant MON, BKV APL-510N-EX, BPV AFC2000

€522,49
Taxes incluses Frais de livraison calculés lors du paiement.

Vanne papillon d'eau Elephant WBV1413E-2W-Fb-H, matériau du corps - fonte GGG50, matériau du disque - fonte GGG40, joint - EPDM, avec actionneur pneumatique double effet PA-DA, 4M310-08 220V, volant MON, BKV APL-510N-EX, BPV AFC2000 - DN40 / 16 bars est en rupture de stock et sera expédié dès qu’il sera de retour en stock.

Livraison et expédition

Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.

Si vous avez des questions sur nos produits, nos options de livraison ou toute autre chose, n'hésitez pas à nous contacter.

Description

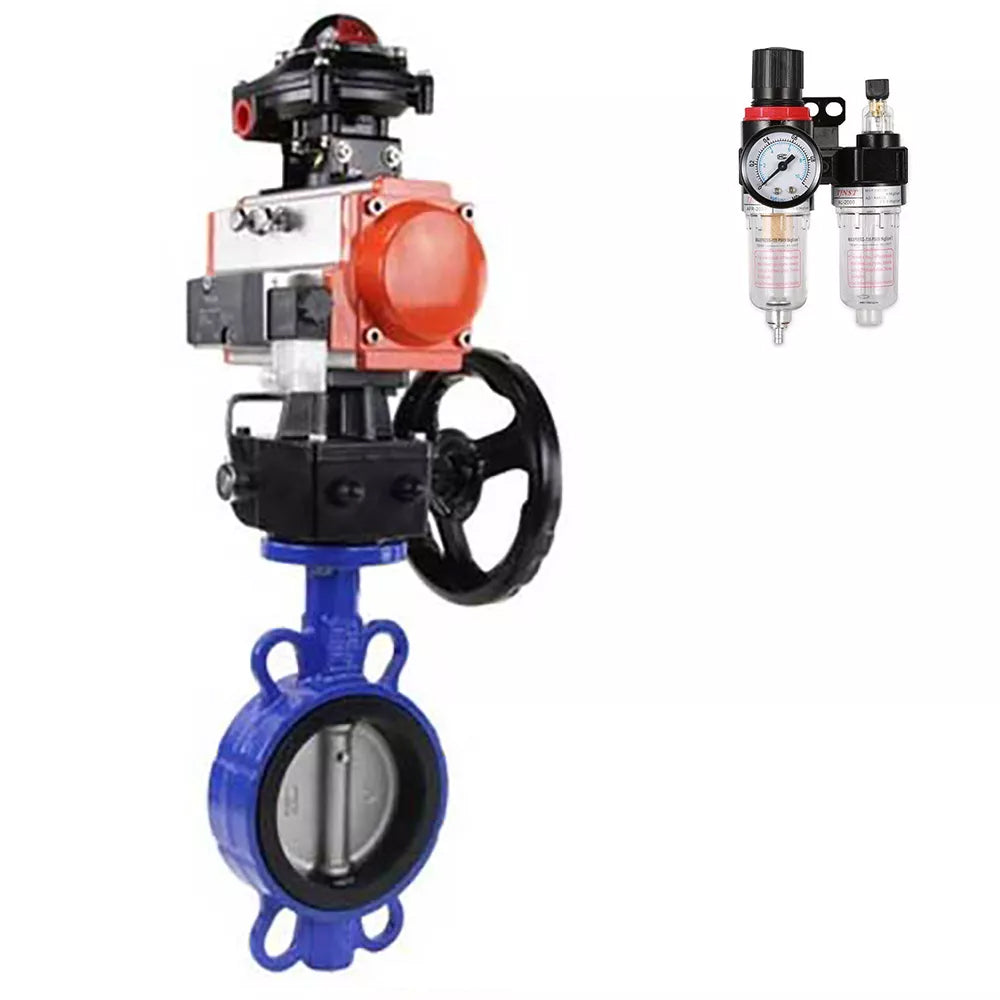

Butterfly valve model WBV1413E-2W-Fb PA-DA 4M310-08 APL-510N-EX MON 4M310-08 220V AFC2000 is designed for use as shut-off or regulating valves to control flows in heating, water supply systems, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-DA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 220 V are used for control in pneumatic systems having NAMUR docking surface, for installation of actuators through through holes in the body.

The HDM worm gear reduction manual doublet allows manual setting of the required positioning of the shut-off valve by a quarter turn, acting as an alternative to pneumatic, electric or hydraulic quarter-turn actuators. Suitable for both indoor and outdoor installation. The modular design of the manual override is intended to provide the most efficient and effective solution to the full range of manual override applications.

The AFC2000 air treatment unit is designed to purify compressed air from dripping moisture and solid particles, remove condensate, automatically maintain pressure at a preset level, supply lubricant from a reservoir in the compressed air stream to pneumatic system elements with a large capacity range from 500 liters/minute to 10,000 liters/minute. The lubricator (oil atomizer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components such as pneumatic cylinders and pneumatic valves.

The APL-510N-EX limit switch unit is an electrotechnical device designed to open and close the working circuit and to visualize the positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which allows to increase the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.





Technical parameters of Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

Parameter Value
Nominal diameter DN, mm 40 – 300
Nominal pressure PN, bar 16
Flow direction Bidirectional
Operating medium temperature, °C -20 to +120
Ambient temperature, °C -20 to +100
Shut-off tightness Class A
Working medium Cold and hot water, oil-free and grease-free air, stationary air conditioning, mildly aggressive media, other media neutral to material
Body material Cast iron GGG50
Disc material Cast iron GGG40
Pipeline connection interflange
Control type Handle
Average service life, years 5
Average cycle life (open/close cycles) 20,000 (under non-aggressive media and average pressure and temperature conditions)




Butterfly valves WBV1413E-2W-Fb-H, body material - cast iron GGG50, disk material - cast iron GGG40, seal - EPDM, with pneumatic actuator double action PA-DA, 4M310-08 220V, handwheel MON, LSU APL-510N-EX, ATU AFC2000





Gate dimensions Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

DN H H1 H2 L L1 ØDm ØDk D2
(flow section)
mm
40 146 74 25 43 216 73 75 50



DN H H1 H2 L L1 ØDm ØDk
mm
50 146 74 25 43 216 73 84.5
65 156 80 25 46 216 86 104.5
80 163 100 25 46 216 103 123.5
100 180 116 25 52 255 131 139.5
125 189 123 25 56 255 155 169.5
150 206 137 25 56 255 183 196
200 232 165 35 60 370 235 247
250 275 203 35 68 370 286 304
300 314 235 35 78 370 338 358

Sketch of gates Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H





Materials of parts of rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H

№ Name Material
1 Body cast iron GGG50
2 Cuff EPDM
3 Disk cast iron GGG40
4 Stock stainless steel SS 416/2Cr13
5 Hairpin stainless steel AISI 316L
6 Sleeve NBR
7 Sealing ring NBR
8 Fixing plate carbon steel
9 Handle with lock carbon steel

Sketch of materials for rotary disc valves Elephant Water Butterfly Valve Elephant WBV1432E-2W-Fb-H



Technical data of DA double-acting pneumatic actuators:

Type of pneumatic actuator DA - double-acting
Nominal pressure PN, bar 12
Working pressure, bar 2...8
Working medium filtered compressed air
Maximum particle diameter of the working medium, µm2 ≤30
Ambient temperature, ⁰C -20 to +80
Swivel angle, ° 0 - 90
Swivel angle adjustment, % ±5
Position indicator open/closed
Top connection standard NAMUR
Air connection standard NAMUR
Average life, cycles closed/open 70 000 (for non-aggressive media and medium pressure and temperature values)


DA pneumatic actuators double-acting rotary actuators




Dimensions and mounting dimensions of DA double-acting pneumatic actuators:

Model A, mm B, mm C, mm D, mm E, mm F, mm G, mm H, mm
DA-052 30 41,5 65,5 72 92 65 30 80
DA-065 36 47 81 88 108 72 30 80
DA-083 46 57 98,5 108,7 128,7 92 30 80
DA-105 57,5 64 122,5 133 153 109,5 30 80
DA-130 67,5 74,5 145,5 155 185 127,5 30 130
DA-140 75 77 161 172 202 137,5 30 130
DA-160 87 87 184 197 227 159 30 130
DA-210 113 113 235,5 255 285 210 30 130
DA-270 147 147 299 326 356 273 30 130
DA-300 162 174 330 350 380 312 30 130
DA-350 190 195 483 410 440 365 30 130



Model I, mm J, mm M, mm N, mm Z, mm d, mm K L
DA-052 36 50 11x11 14 147 40 M5x8 M6x10
DA-065 50 70 14x14 18 168 40 M6x10 M8x13
DA-083 50 70 17x17 21 204 40 M6x10 M8x13
DA-105 70 102 22x22 26 268 40 M8x13 M10x16
DA-130 70 102 22x22 26 301 55 M8x13 M10x16
DA-140 102 125 27x27 31 390 55 M10x16 M12x20
DA-160 102 125 27x27 31 458 55 M10x16 M12x20
DA-210 - 140 36x36 40 532 80 - M16x25
DA-270 - 165 46x46 50 718 80 - M20x25
DA-300 - 165 46x46 50 760 80 - M20x25
DA-350 165 254 46x46 50 920 80 M20x25 8xM16x25

Sketch of dimensions of DA double-acting pneumatic actuators





Materials of parts for DA double-acting pneumatic actuators:

№ Part name Material
1 Indicator screw ABS plastic
2 Position indicator ABS plastic
3 Spring clip stainless steel 304
4 Metal washer stainless steel 304
5 Pressure washer engineering plastic
6 Housing hard anodized extruded aluminum alloy
7 Pressure washer engineering plastic
8 Limiter alloy steel
9 Shaft sealing ring upper NBR
10 Upper shaft sliding ring engineering plastic
11 Shaft nickel plated alloy steel
12 Shaft sliding ring lower engineering plastic
13 Shaft O-ring lower NBR
14 Plug NBR
15 Seal ring of adjusting screws NBR
16 Washer of adjusting screw stainless steel 304
17 Lock nut of adjusting screw stainless steel 304
18 Adjusting screw stainless steel 304
19 Piston die-cast aluminum alloy
20 Piston guide plate engineering plastic
21 Piston sliding ring engineering plastic
22 Piston O-ring NBR
23 Spring set spring steel
24 Cover O-ring NBR
25 End cap cast aluminum with polyester coating
26 Cover screw stainless steel 304
27 Stop screw stainless steel 304
28 Adapter carbon steel

Material sketch of DA double-acting pneumatic actuators





Technical characteristics of the pneumatic valve 4m310-08 220V:

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1,5...8
Working medium filtered compressed air
Ambient temperature t, ⁰C +5 to +50
Response frequency 5 cycles/s
Manual duplication is
Degree of protection IP 65
Mounting through holes in the housing
Enclosure material anodized aluminum
Response time 0.05 sec.






Technical parameters of the handwheel MON:

Name Value
Climatic version U,UHL,T,OM
Degree of protection, IP 67
Connection type ISO 5211
Manual doubler MON





Dimensions and dimensions of the handwheel MON:

Model MON1-250-T26-ISO MON2-450-T28-ISO MON3-700-T38-ISO MON4-1200-T54-ISO
b1, mm 14 17 22 27
N, mm 22 22 28 32
b2, mm 14 17 22 27
M, mm 16 18 22 30
D1, mm Ø50 Ø70 Ø102 Ø102
4-M1, mm 4-M6 4-M8 4-M10 4-M10
D2, mm Ø70 Ø102 Ø125 Ø125
4-M2, mm 4-M8 4-M10 4-M12 4-M12
E, mm 70x70 95x95 114x114 129x129
D3, mm Ø50 Ø70 Ø102 Ø125
4-Ø1, mm 4-Ø6.5 4-Ø8.5 4-Ø10.5 4-Ø12.5
D4, mm Ø70 Ø102 Ø125 Ø140
4-Ø2, mm 4-Ø8.5 4-Ø10.5 4-Ø12.5 4-Ø16.5
A, mm 90 125 140 188.5
B, mm 55 64 71 93
ØC, mm Ø88 Ø110 Ø129 Ø174
F, mm 115 135 166 202
T, mm 44 62.5 70 94
Y, mm 145 178 212 280
H, mm 120 133 180 195
S, mm 53 56.5 68.7 84
K, mm 10 13 12.5 15
Ø hand wheel, mm 180 200 280 320
Sketch of dimensions and dimensions of the MON handwheel MON





MON handwheel materials:

№ Name Material
1 Stem for mounting the pneumatic actuator Steel 45
2 Sealing ring EPDM
3 Fixing spring Spring steel
4 Upper end cover Aluminum alloy
5 Screw Steel 304
6 Locking bracket (main rod) Steel 304
7 Housing Aluminum alloy
8 Sealing ring EPDM
9 Gear unit Cast iron BCh50
10 Transition coupling Cast iron BCh40
11 Gear stem Cast iron BCh40

Materials of the handwheel





Characteristics of limit switch unit APL-510N-EX:

Parameter Significance
Enclosure all-weather IP67/ NEMA4 4X,7,9
explosion-proof E EX d IIC T6
Compatible devices quarter-turn pneumatic actuators;
- any actuators with shaft rotation by 90
Full rotation angle 90°
Cable glands 2 x NPT 3/4”
Electrical connection screw terminals 8 points (0.08 - 2.5) mm2
Cable gland thread 2 x NPT 3/4”
Type of visual indicator two-color hemisphere: OPEN (Open) - yellow CLOSED (Closed) - red
Switches/sensors two mechanical switches two proximity sensors
Rated voltage, V 250
Rated current, A 16
Permissible ambient temperature, °C -20 to +66
Average life, cycles 10 000 000
Weight, kg 1.8





Main parameters of the AFC2000 air treatment unit:

Operating pressure, bar 8
Maximum pressure, bar 10
Adjustable pressure range, bar 0,5 ÷ 9
Breaking pressure, bar 15
Air connection 1/4”
Operating temperature, C -5 to +60
Filter particle size, µm 40
Oil viscosity ISO VG 32
Weight, kg 0,395
Set composition filter-moisture separator, pressure regulator, lubricator, bracket
