Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-10 220V, LSU APL-410N Ex, ATU AFC2000
Ball valves Elephant BV3232P(2pc)-FP-F-ISO-H, body material - Stainless steel AISI 316, seal - PTFE / PTFE / Teflon, with pneumatic actuator double action PA-DA, 4V320-10 220V, LSU APL-410N Ex, ATU AFC2000 - DN15 40 bar / 40 bar est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Livraison et expédition
Livraison et expédition
Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.
Description
Description

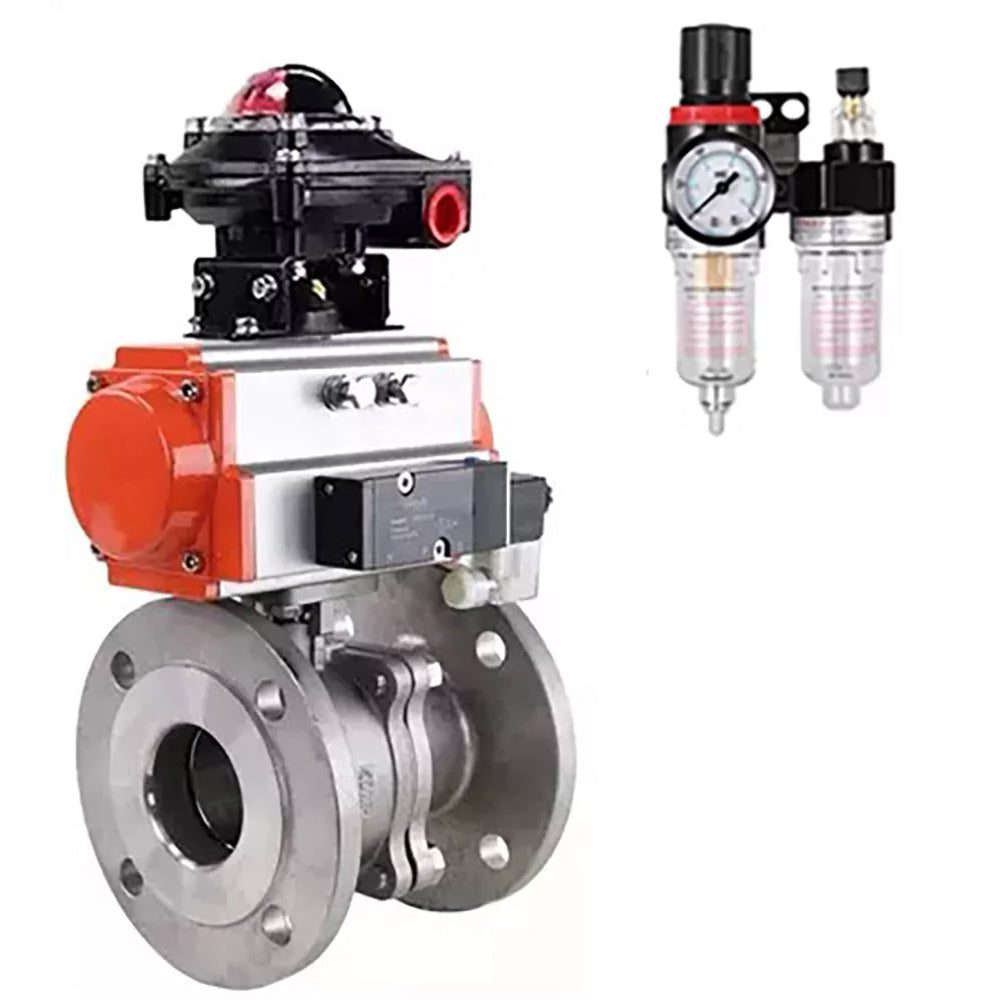

The Elephant PA-DA double-acting pneumatic actuator is designed to automate the process of controlling industrial shut-off valves - gates, ball valves. Elephant pneumatic actuators are designed for use both indoors and outdoors. All internal and external parts have an anti-corrosion coating.
Pneumatic distributor Elephant 4V320-10 220V is used to change the direction, start, stop the flow of compressed air in the pneumatic system depending on the external control action.
The Elephant APL-410N EX limit switch unit is an electrical device designed to open and close the working circuit and to visualize the positions of the shut-off element of pipeline valves. As a rule, a sealed box contains two mechanical switches rated for up to 250 V, which monitor the position of the actuator rod and signal in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color hemisphere of the visual indicator. If the connected pipeline valve is closed, then only the red part of the hemisphere with the inscription CLOSED is visible; if open, only the yellow part with the inscription OPEN. This visual indicator is clearly visible from afar, which simplifies the inspection of the equipment, and the color difference between the open and closed positions reduces the likelihood of erroneous perception of information. Thanks to the use of the LSU, it becomes possible to transmit information about the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics when faults are detected.
The AFC2000 air preparation unit is designed to clean compressed air from droplet moisture and solid particles, remove condensate, automatically maintain the pressure at a given level, supply lubricant from the tank to the compressed air flow to the pneumatic system elements with a large range of throughput from 500 liters/minute to 10,000 liters/minute. The lubricator (oil sprayer) adds oil with a viscosity of 32 mm²/s (=cSt) at 40°C to the pneumatic system for further lubrication of control components - pneumatic cylinders and pneumatic distributors.
Technical parameters of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, BCV APL-410N EX, BCV AFC2000:
Name | Meaning |
Type of crane device | two-way |
Application | heat supply |
Working environment | water, air, steam, industrial water, oil, oil products |
Connection to the pipeline | flanged |
Water intake | No |
Type of flow section | full bore |
Control type | With pneumatic drive |
Joining | flanged |
Control | double acting pneumatic actuator |
Availability of limit switches | There is |
Availability of pneumatic distributor | There is |
Dimensions and sizes of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic distributor 4V320-10 220V, LSU APL-410N EX, ATU AFC2000:
DN | d, mm | D, mm | D1, mm | D2, mm | C, mm | t, mm | L, mm | W, mm | H, mm | H1, mm | A, mm | B, mm | KxK (rod) | N-∅Z, pcs-mm |
15 | 15 | 95 | 65 | 45 | 16 | 2 | 115 | 127 | 79 | 8 | 36 | 42 | 9х9 | 4-∅14 |
20 | 20 | 105 | 75 | 58 | 18 | 2 | 120 | 127 | 83 | 9 | 36 | 42 | 9х9 | 4-∅14 |
25 | 25 | 115 | 85 | 68 | 18 | 2 | 125 | 165 | 94 | 14 | 42 | 50 | 11х11 | 4-∅14 |
32 | 32 | 140 | 100 | 78 | 18 | 2 | 130 | 165 | 115 | 15 | 42 | 50 | 11х11 | 4-∅18 |
40 | 38 | 150 | 110 | 88 | 18 | 3 | 140 | 186 | 115 | 17 | 50 | 70 | 14х14 | 4-∅18 |
50 | 50 | 165 | 125 | 102 | 20 | 3 | 150 | 186 | 120 | 20 | 50 | 70 | 14х14 | 4-∅18 |
65 | 65 | 185 | 145 | 122 | 19 | 3 | 170 | 260 | 151 | 22 | 70 | 102 | 17х17 | 4-∅18 |
80 | 76 | 200 | 160 | 138 | 21 | 3 | 180 | 321 | 158 | 21 | 70 | 102 | 17х17 | 8-∅18 |
100 | 99 | 220 | 180 | 158 | 21 | 3 | 190 | 321 | 188 | 20 | 70 | 102 | 17х17 | 8-∅18 |
Sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H with double-acting pneumatic actuator PA-DA, pneumatic valve 4V320-10 220V, ball valve APL-410N EX, ball valve AFC2000
Detail and material sketch of ball valves Elephant BV3232P(2pc)-FP-F-ISO-H
Table of parts and materials for ball valves Elephant BV3232P(2pc)-FP-F-ISO-H:
Item No. | Name of parts | Material |
1 | Frame | CF8M (analogue of AISI 316 steel) |
2 | Ball | Stainless steel SS316 |
3 | Bolt | stainless steel |
4 | Thrust washer | PTFE |
5 | Stock | Stainless steel SS316 |
6 | Flange element (2 pcs) | CF8M (analogue of AISI 316 steel) |
7 | Ball seal (2 pcs) | PTFE |
Technical data of DA double-acting pneumatic actuators:
Type of pneumatic actuator | DA - double-acting |
Nominal pressure PN, bar | 12 |
Working pressure, bar | 2...8 |
Working medium | filtered compressed air |
Maximum particle diameter of the working medium, µm2 | ≤30 |
Ambient temperature, ⁰C | -20 to +80 |
Swivel angle, ° | 0 - 90 |
Swivel angle adjustment, % | ±5 |
Position indicator | open/closed |
Top connection standard | NAMUR |
Air connection standard | NAMUR |
Average life, cycles closed/open | 70 000 (for non-aggressive media and medium pressure and temperature values) |
DA pneumatic actuators double-acting rotary actuators
Dimensions and mounting dimensions of DA double-acting pneumatic actuators:
Model | A, mm | B, mm | C, mm | D, mm | E, mm | F, mm | G, mm | H, mm |
DA-052 | 30 | 41,5 | 65,5 | 72 | 92 | 65 | 30 | 80 |
DA-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 |
DA-083 | 46 | 57 | 98,5 | 108,7 | 128,7 | 92 | 30 | 80 |
DA-105 | 57,5 | 64 | 122,5 | 133 | 153 | 109,5 | 30 | 80 |
DA-130 | 67,5 | 74,5 | 145,5 | 155 | 185 | 127,5 | 30 | 130 |
DA-140 | 75 | 77 | 161 | 172 | 202 | 137,5 | 30 | 130 |
DA-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 |
DA-210 | 113 | 113 | 235,5 | 255 | 285 | 210 | 30 | 130 |
DA-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 |
DA-300 | 162 | 174 | 330 | 350 | 380 | 312 | 30 | 130 |
DA-350 | 190 | 195 | 483 | 410 | 440 | 365 | 30 | 130 |
Model | I, mm | J, mm | M, mm | N, mm | Z, mm | d, mm | K | L |
DA-052 | 36 | 50 | 11x11 | 14 | 147 | 40 | M5x8 | M6x10 |
DA-065 | 50 | 70 | 14x14 | 18 | 168 | 40 | M6x10 | M8x13 |
DA-083 | 50 | 70 | 17x17 | 21 | 204 | 40 | M6x10 | M8x13 |
DA-105 | 70 | 102 | 22x22 | 26 | 268 | 40 | M8x13 | M10x16 |
DA-130 | 70 | 102 | 22x22 | 26 | 301 | 55 | M8x13 | M10x16 |
DA-140 | 102 | 125 | 27x27 | 31 | 390 | 55 | M10x16 | M12x20 |
DA-160 | 102 | 125 | 27x27 | 31 | 458 | 55 | M10x16 | M12x20 |
DA-210 | - | 140 | 36x36 | 40 | 532 | 80 | - | M16x25 |
DA-270 | - | 165 | 46x46 | 50 | 718 | 80 | - | M20x25 |
DA-300 | - | 165 | 46x46 | 50 | 760 | 80 | - | M20x25 |
DA-350 | 165 | 254 | 46x46 | 50 | 920 | 80 | M20x25 | 8xM16x25 |
Sketch of dimensions of DA double-acting pneumatic actuators
Materials of parts for DA double-acting pneumatic actuators:
№ | Part name | Material |
1 | Indicator screw | ABS plastic |
2 | Position indicator | ABS plastic |
3 | Spring clip | stainless steel 304 |
4 | Metal washer | stainless steel 304 |
5 | Pressure washer | engineering plastic |
6 | Housing | hard anodized extruded aluminum alloy |
7 | Pressure washer | engineering plastic |
8 | Limiter | alloy steel |
9 | Shaft sealing ring upper | NBR |
10 | Upper shaft sliding ring | engineering plastic |
11 | Shaft | nickel plated alloy steel |
12 | Shaft sliding ring lower | engineering plastic |
13 | Shaft O-ring lower | NBR |
14 | Plug | NBR |
15 | Seal ring of adjusting screws | NBR |
16 | Washer of adjusting screw | stainless steel 304 |
17 | Lock nut of adjusting screw | stainless steel 304 |
18 | Adjusting screw | stainless steel 304 |
19 | Piston | die-cast aluminum alloy |
20 | Piston guide plate | engineering plastic |
21 | Piston sliding ring | engineering plastic |
22 | Piston O-ring | NBR |
23 | Spring set | spring steel |
24 | Cover O-ring | NBR |
25 | End cap | cast aluminum with polyester coating |
26 | Cover screw | stainless steel 304 |
27 | Stop screw | stainless steel 304 |
28 | Adapter | carbon steel |
Material sketch of DA double-acting pneumatic actuators
Technical parameters of the Elephant 4V320-10 220V pneumatic valve
Name | Meaning |
Type of pneumatic distributor | spool valve |
Model of pneumatic distributor | 4V320-10 220V |
Working pressure, bar | 1.5 ÷ 8 |
Supply voltage, V | 220 V |
Response frequency, cycles/sec | 5 |
Limit Switch Block Elephant APL-410N EX
Technical parameters of the limit switch unit Elephant APL-410N EX
Name | Meaning |
Limit switch block model | APL-410N EX |
Ambient temperature, °C | from -20 to 210 |
Service life, years | 10 |
Table of parts and materials of the limit switch block Elephant APL-410N EX:
Item No. | Detail | Material |
1 | Visual indicator | ABS plastic / polycarbonate |
2 | Visual indicator cover | polycarbonate |
3 | Label | |
4 | Cover screws | stainless steel |
5 | LSU housing cover | aluminum die casting |
6 | Shaft | stainless steel |
7 | Limit switches | |
8 | Cams (eccentrics) | polycarbonate |
9 | LSU case | aluminum die casting |
10 | Terminal block | |
11 | Ground terminal | stainless steel |
12 | Hole (thread) for cable entry | |
13 | bracket | stainless steel |
Main parameters of the Elephant AFC2000 air treatment unit
Working pressure, bar | 8 |
Maximum pressure, bar | 10 |
Adjustable pressure range, bar | 0.5 ÷ 9 |
Destruction pressure, bar | 15 |
Air connection | 1/4" |
Operating temperature, C | from -5 to +60 |
Size of filtered particles, µm | 40 |
Oil viscosity | ISO VG 32 |
Weight, kg | 0.395 |
Kit composition | filter-moisture separator, pressure regulator, lubricator, bracket |
