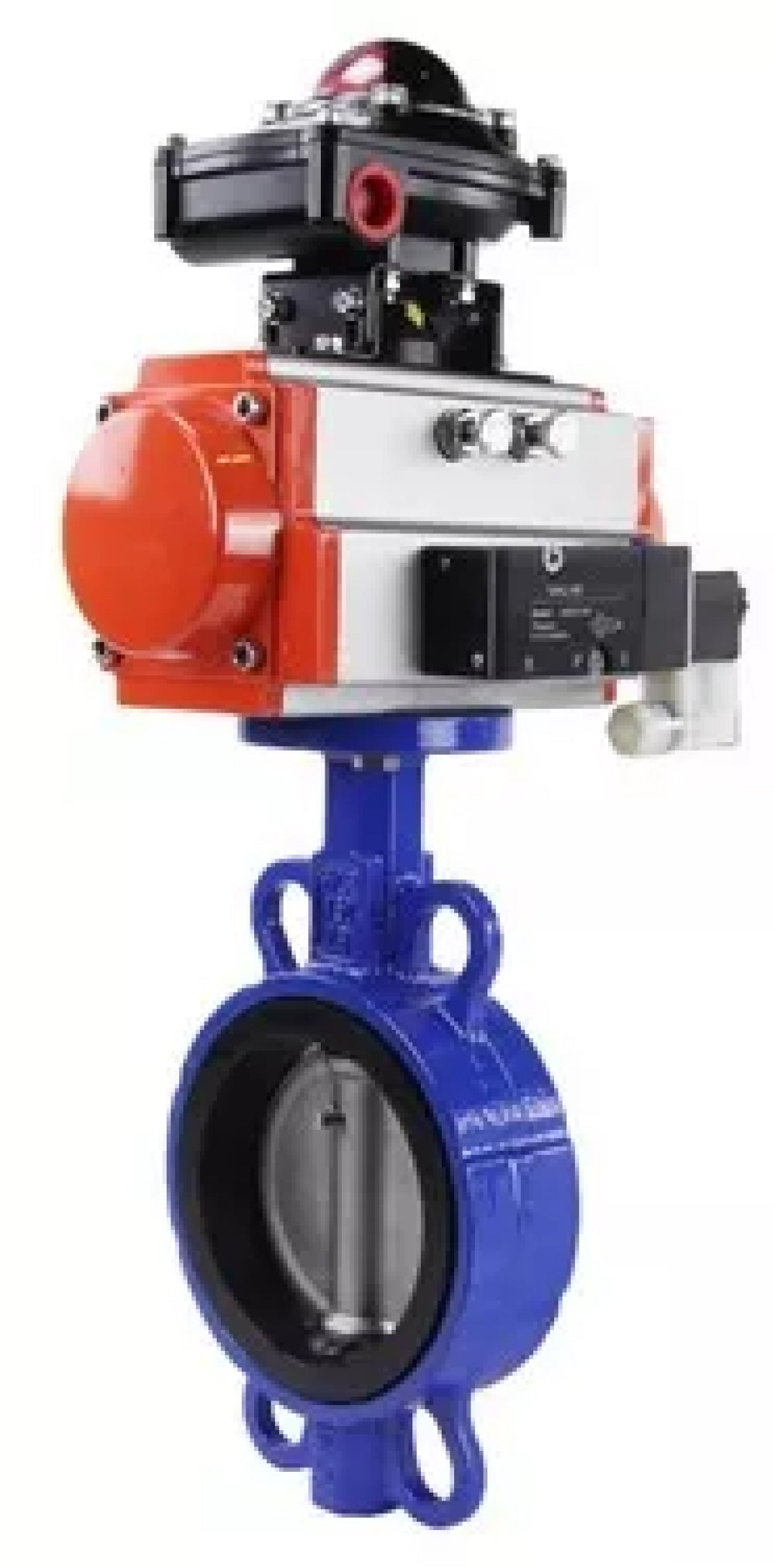

Vanne papillon d'eau Elephant WBV3432N-2W-Fb-H, matériau du corps - acier au carbone, matériau du disque - acier inoxydable AISI 316L, joint - NBR, avec actionneur pneumatique avec ressorts de rappel PA-SA, 4M310-08 220V, BKV APL-510N-EX

Butterfly valve model WBV3432N-2W-Fb PA-SA 4M310-08 APL-510N-EX 4M310-08 220V is designed for use as shut-off or regulating valves to control flows in heating systems, water supply, in technological processes of food, chemical, oil and gas, pulp and paper and other industries.

PA-SA pneumatic actuators are designed for automation of control process of industrial shut-off valves - gates, ball valves. Pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts are anticorrosive coated.

Pneumatic actuators 4m310-08 220 V are used for control in pneumatic systems with NAMUR docking surface, for installation of actuators through through holes in the housing.

Unit of limit switchesAPL-510N-EX is an electrotechnical device designed for opening and closing of the working circuit and for visualization of positions of the shut-off body of pipeline valves. In a sealed box, as a rule, there are two mechanical switches designed for voltage up to 250 V, which monitor the position of the actuator stem and signalize in extreme positions. They are mounted on top of the actuator surface. In the upper part of the limit switch unit there is a two-color visual indicator hemisphere. If the connected pipe fitting is closed, only the red part of the hemisphere labeled CLOSED is visible; if it is open, only the yellow part labeled OPEN is visible. This visual indicator is clearly visible from a distance, which simplifies the inspection of the equipment, and the color difference between the open and closed position reduces the probability of misinterpretation of information. Due to the use of the BCV it Weightomes possible to transmit information on the position of pipeline valves (open/closed) to automated control systems, which increases the reliability of the system as a whole and simplifies diagnostics in case of malfunction detection.

Technical parameters of Water Butterfly Valve Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX:

Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX

Dimensions and dimensions of butterfly valves Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX:

Sketch Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX

Materials of butterfly valves Elephant WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX:

Sketch of parts and materials Butterfly valves WBV3432N-2W-Fb-H, body material - carbon steel, disk material - stainless steel AISI 316L, seal - NBR, with pneumatic actuator with return springs PA-SA, 4M310-08 220V, LSU APL-510N-EX

Technical data of SA pneumatic actuators with return springs:

SA pneumatic actuators rotary with return springs

Dimensions and mounting dimensions of SA pneumatic actuators with return springs:

Sketch of dimensions of SA pneumatic actuators with return springs

Materials of parts of SA pneumatic actuators with return springs:

Material sketch of SA pneumatic actuators with return springs

Technical characteristics of the pneumatic distributor 4M310-08 NAMUR

Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR

Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR

Characteristics of limit switch unit APL-510N-EX:
