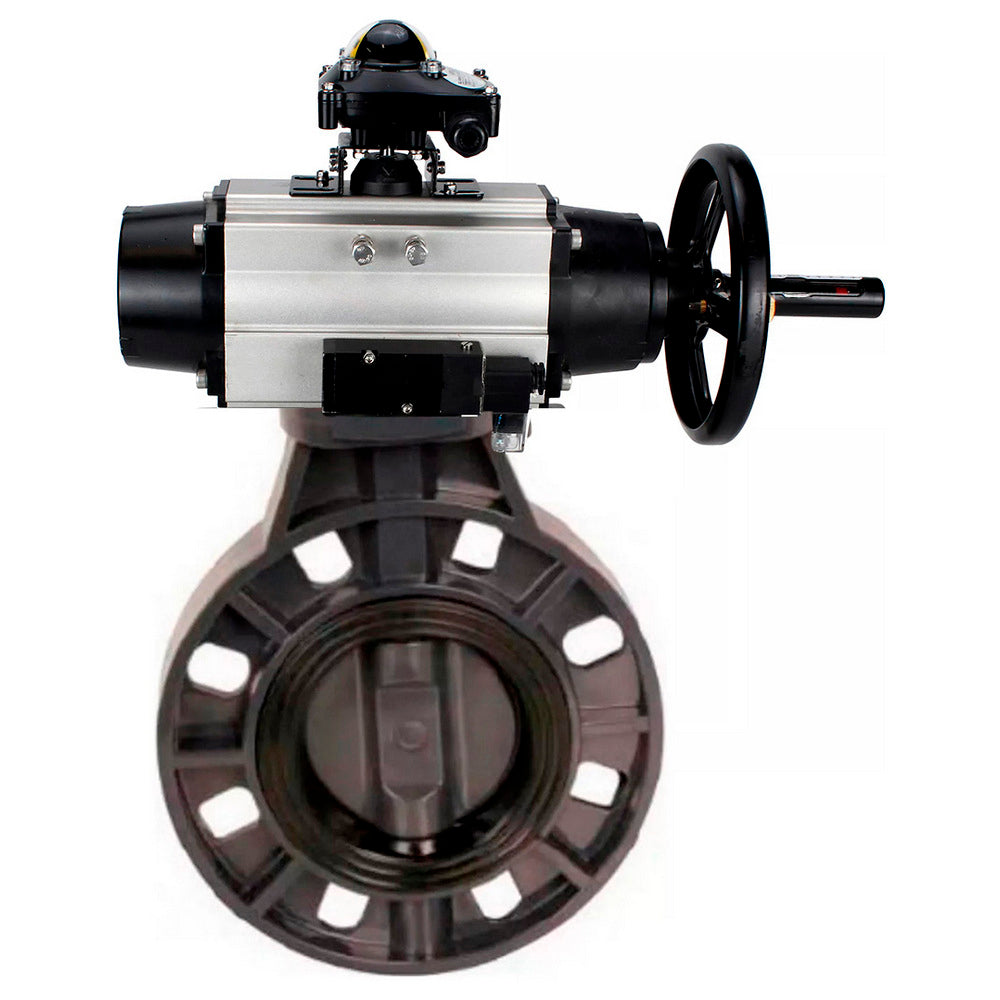

Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4M310-08 NAMUR 220V and LSU APL-410N EX
Butterfly valves Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with pneumatic actuator double action PA-DA-105-1, pneumatic distributor 4M310-08 NAMUR 220V and LSU APL-410N EX - DN100 / 10 bar est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Livraison et expédition
Livraison et expédition
Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.
Description
Description
Butterfly valves made of UPVC (unplasticized polyvinyl chloride) is designed to reliably shut off and regulate the flow of aggressive and neutral liquids at moderate pressures and temperatures. Due to its high chemical resistance and corrosion resistance, it is widely used in the chemical industry, water treatment systems and municipal infrastructure.
The rotary pneumatic actuator is designed to automate the process of controlling industrial valves.
The limit switch box is designed for visual and electrical signaling of the final positions of the shut-off valve body: ball-check-valve, ball valve or wafer butterfly valve. Mounted on top of the surface of the pneumatic actuator and connected to the drive shaft DIN standard. In a sealed box, as a rule, there are two sensors that monitor the position of the drive shaft and signal in extreme positions. OMRON microswitches, inductive sensors or reed switches are used as sensors.
Pneumatic valves are used for control in pneumatic systems with NAMUR docking surface, for installation of valves through holes in the housing.
Technical parameters of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| Characteristic | Meaning |
| Gate type | rotary disk |
| Diameter | 50-200 mm |
| Nominal pressure | 10 bar |
| Working medium temperature | 0 to +45 °C |
| Application | Water Supply |
| Operating environment | Liquids, Air and Gases |
| Connection type | Compact flanged |
| Control type | Manual (handle, gearbox) |
| Sealing class | A |
| Manufacturer's country | China |
| Warranty | 12 months |
Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem
Dimensions of Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| DN | D | D1 | H1 | L | n–Ød | Weight |
| DN50 | 158 | 120,5 | 98 | 45 | 4–Ø19,3*24,5 | 0,85 |
| DN65 | 179 | 130,5 | 110 | 45 | 4– Ø19,3*24,5 | 1 |
| DN80 | 195 | 154 | 131 | 48 | 8–Ø20*24 | 1,37 |
| DN100 | 226,5 | 181 | 155 | 54 | 8– Ø20*27 | 2,02 |
| DN125 | 253,5 | 208 | 169 | 63 | 8–Ø23*27,5 | 3,26 |
| DN150 | 280 | 234 | 185 | 69 | 8–Ø23*28 | 3,95 |
| DN200 | 340 | 291,5 | 231 | 89 | 8– Ø23*28,5 | 6,9 |
| DN | ØD1 | ØD2 | H | BxB | n | ISO 5211 |
| DN50 | 50/70 | 36/49.5 | 13 | 11×11 | 4 | F05/F07 |
| DN65 | 50/70 | 36/49.5 | 13 | 11×11 | 4 | F05/F07 |
| DN80 | 50/70 | 36/49.5 | 17 | 11×11 | 4 | F05/F07 |
| DN100 | 50/70 | 36/49.5 | 17 | 14×14 | 4 | F05/F07 |
| DN125 | 70/90/102 | 49.5/63.5/72 | 22 | 17×17 | 4 | F07/F10 |
| DN150 | 70/90/102 | 49.5/63.5/72 | 22 | 17×17 | 4 | F07/F10 |
| DN200 | 70/90/102 | 49.5/63.5/72 | 22 | 17×17 | 4 | F07/F10 |
Sketch Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem
Materials of parts Elephant WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem:
| № | Part Name | Material |
|---|---|---|
| 1 | Body | UPVC |
| 2 | Disc | UPVC |
| 3 | Seat seal | EPDM |
| 4 | Rod | Steel 45 |
| 5 | Rod seal | EPDM |
Sketch of parts and materials Butterfly valves WBV4242E-2W-Fb-ISO, body material - UPVC, disc material - UPVC, seal - EPDM, with ISO flange and bare square stem
Technical parameters of Elephant pneumatic drives PA-DA-105-1:
| Characteristic | Meaning |
| Pneumatic drive type | double acting |
| Control pressure | 2-8 bar |
| Operating temperature | from -20 to +80 °C |
| Angle of rotation | 90±5° |
| Visual position indicator | open / closed |
| Manual control | flywheel |
| Air supply connection thread | G1/4 |
Pneumatic drives Elephant PA-DA-105-1
Dimensions of Elephant pneumatic drives PA-DA-105-1:
| Model | A, mm |
B, mm |
C, mm |
D, mm |
G, mm |
W, mm |
| PA-DA-105-1 | 495 | 133 | 109.5 | 153 | 26 | 200 |
Sketch Pneumatic drives Elephant PA-DA-105-1
Technical parameters of Elephant limit switch APL-410N EX:
| Characteristic | Meaning |
| Terminal Block | 8 cells 0.05-2.5mm2 |
| Voltage | 250V |
| Rated current | 10A |
| Indicator Position | CLOSED: red, OPEN: yellow |
| Ambient temperature | from -25 to +80 °C |
| Cable Entry Thread | 2 x NPT1/2" |
| Sensor | two mechanical switches, two proximity sensors |
| Body | IP65/NEMA4&4X Exd IIB T6 |
Limit switch Elephant APL-410N EX
Dimensions of Elephant limit switch APL-410N EX:
| A, mm | 177 |
| B, mm | 174 |
| C, mm | 178 |
| D, mm | 101 |
| E, mm | 76 |
| F, mm | 57 |
| G, mm | 55 |
| H, mm | 23 |
| I, mm | 27 |
| J, mm | 3 |
| K, mm | 4 |
| Ød1, mm | 5 |
| Ød2, mm | 9.5 |
Sketch Limit switch Elephant APL-410N EX
Technical characteristics of the pneumatic distributor 4M310-08 NAMUR
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08 NAMUR
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
Basic materials and parts of the pneumatic distributor 4M310-08 NAMUR
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08 NAMUR
