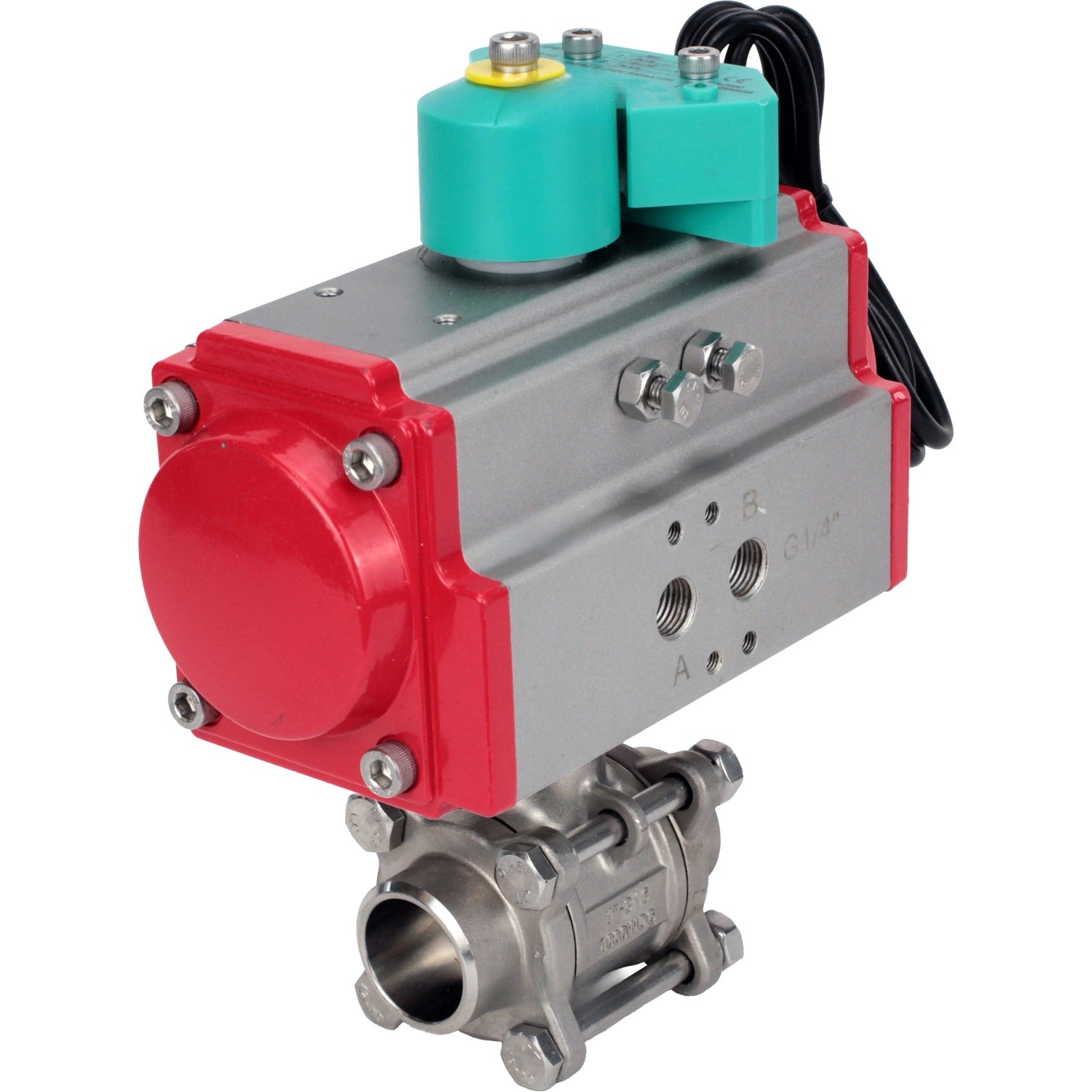

Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/40/25 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with pneumatic drive PA-DA and ALS200D magnetic switch
Ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/40/25 bar full bore, body - 316 stainless steel, seal - PTFE, for welding, with pneumatic drive PA-DA and ALS200D magnetic switch - DN10 / 63 bar est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Livraison et expédition
Livraison et expédition
Les frais de livraison sont déterminés lors du processus de paiement et varient en fonction de plusieurs facteurs, notamment le type de produit, le délai de livraison, le fournisseur de services et le pays de destination.
Description
Description
Ball valves are used as shutoff valves in heating and water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Valves of this series can be installed in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-corrosive to the valve materials.
Operating principle: The flow is shut off by a shutoff element, which is a ball with a through cylindrical bore. A handle mounted on the body rotates the ball around its axis. To completely shut off the flow, simply rotate the handle 90 degrees.
PA-DA-x double-acting pneumatic actuators use two ports to supply the control fluid and create movement in both directions, both for opening and closing the valve. One port is used to move the piston in one direction, and the other to move it in the opposite direction.
Technical characteristics of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/40/25 bar
| Characteristics | Value |
| Nominal diameter | 10-100 mm |
| Tightness class | A |
| Seal type | PTFE / Fluoroplastic / Teflon |
| Connection | weld end |
| Valve device type | two-way |
| Valve ball bore | full-bore |
| Control type | double-acting pneumatic actuator |
| Working fluid temperature | -20 to +200 °C |
| Mediment | water, steam, petroleum products, neutral media |
| Application area | water supply, heat supply, pneumatic systems |
| Country of manufacture | China |
| Service life | 10 years |
Technical characteristics of Elephant double-acting rotary pneumatic actuators PA-DA
| Characteristics | Value |
| Pneumatic drive type | double-acting |
| Nominal pressure | 12 bar |
| Working pressure | 2...8 bar |
| Maximum particle diameter | less than 30 µm2 |
| Working medium | filtered compressed air or non-aggressive gases, oils |
| Adjustment range | ± 5° for rotation at 0° and 90° |
Technical characteristics of the Elephant ALS200D magnetic switch for pneumatic actuators
| Characteristics | Value |
| Housing Material | PP-GF30 plastic |
| Housing Protection Rating | IP67 |
| Compatible Devices | pneumatic actuators, any actuators with 90° shaft rotation |
| Shaft Angle Indicator | 0-90° |
| Contact Type | NO |
| Sensor Interaction Type | magnetic |
| Sensor Interaction Distance | 1÷6 mm |
| On/Off Switching Frequency | 0÷4.8 kHz |
| Visual Indication | two LEDs |
| Rated Voltage | 5÷240 V AC/DC |
| Rated Current | 0÷300 mA |
| Rated Power | 10 W |
| Ambient Temperature | -40 to +85 °C |
| Cable Terminal | 4 wires (2 wires/open, 2 wires/close) |
| Weight | 0.14 kg |
| Warranty | 12 months |
| Service Life | 10 years |
Overall and installation dimensions of ball valves Elephant BV3232P(3pc)-FP-W-ISO-H DN10-100 63/40/25 bar
| DN | D, mm | L, mm |
| 10 | 10 | 66 |
| 15 | 19 | 65 |
| 20 | 22 | 74 |
| 25 | 27 | 82 |
| 32 | 35 | 99 |
| 40 | 40 | 108 |
| 50 | 53 | 132 |
| 65 | 64 | 161 |
| 80 | 79 | 196 |
| 100 | 103 | 245 |
Overall and installation dimensions of Elephant double-acting rotary pneumatic actuators PA-DA
| Model | A | B | C | D | E | F | G | H | I | J | M | N | Z | d | K | L |
| PA-DA(SA)-052 | 30 | 41.5 | 65.5 | 72 | 92 | 65 | 30 | 80 | 36 | 50 | 11х11 | 14 | 147 | 40 | M5x8 | M6x10 |
| PA-DA(SA)-065 | 36 | 47 | 81 | 88 | 108 | 72 | 30 | 80 | 50 | 70 | 14х14 | 18 | 168 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-083 | 46 | 57 | 98.5 | 108.7 | 128.7 | 92 | 30 | 80 | 50 | 70 | 17х17 | 21 | 204 | 40 | M6x10 | M8x13 |
| PA-DA(SA)-105 | 57.5 | 64 | 122.5 | 133 | 153 | 109.5 | 30 | 80 | 70 | 102 | 22х22 | 26 | 268 | 40 | M8x13 | M10x16 |
| PA-DA(SA)-130 | 67.5 | 74.5 | 145.5 | 155 | 185 | 127.5 | 30 | 130 | 70 | 102 | 22х22 | 26 | 301 | 55 | M8x13 | M10x16 |
| PA-DA(SA)-140 | 75 | 77 | 161 | 172 | 202 | 137.5 | 30 | 130 | 102 | 125 | 27х27 | 31 | 390 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-160 | 87 | 87 | 184 | 197 | 227 | 159 | 30 | 130 | 102 | 125 | 27х27 | 31 | 458 | 55 | M10x16 | M12x20 |
| PA-DA(SA)-210 | 113 | 113 | 235.5 | 255 | 285 | 210 | 30 | 130 | - | 140 | 36х36 | 40 | 532 | 80 | - | M16x25 |
| PA-DA(SA)-270 | 147 | 147 | 299 | 326 | 356 | 273 | 30 | 130 | - | 165 | 46х46 | 50 | 718 | 80 | - | M20x25 |
Overall and installation dimensions of the Elephant ALS200D magnetic switch for pneumatic actuators
| A, mm | B, mm | C, mm | E, mm | d, mm |
| 75 | 30 | 51 | 40 | 5.5 |
Materials of ball valve parts BV3131P(3pc)-FP-W-ISO-H LONG DN10-150 63/40/25/16 bar
| № | Part Name | Material |
| 1 | Cover | AISI 316 stainless steel |
| 2 | Seal | PTFE |
| 3 | Ball | AISI 316 stainless steel |
| 4 | Stem | AISI 316 stainless steel |
| 5 | O-Ring | PTFE |
| 6 | Body | AISI 316 stainless steel |
| 7 | Seal | PTFE |
| 8 | Gland | AISI 304 stainless steel |
| 10 | Nut | AISI 304 stainless steel |
| 11 | Screw | AISI 304 stainless steel |
| 12 | Nut | AISI stainless steel |
Design of Elephant double-acting rotary pneumatic actuators PA-DA
| № | Part Name | Material |
| 1 | Indicator Screw | ABS plastic |
| 2 | Position Indicator | ABS plastic |
| 3 | Spring Clamp | 304 stainless steel |
| 4 | Metal Washer | 304 stainless steel |
| 5 | Thrust Washer | Engineering plastic |
| 6 | Housing | Extruded aluminum alloy with hard anodizing |
| 7 | Thrust Washer | Engineering plastic |
| 8 | Stopper | Alloy steel |
| 9 | Upper Shaft Seal Ring | NBR |
| 10 | Upper Shaft Anti-Friction Ring | Engineering plastic |
| 11 | Shaft | Nickel-plated alloy steel |
| 12 | Lower Shaft Anti-Friction Ring | Engineering plastic |
| 13 | Lower Shaft Seal Ring | NBR |
| 14 | Plug | NBR |
| 15 | Adjusting Screw Seal Ring | NBR |
| 16 | Adjusting Screw Washer | 304 stainless steel |
| 17 | Adjusting Screw Lock Nut | 304 stainless steel |
| 18 | Adjusting Screw | 304 stainless steel |
| 19 | Piston | Die-cast aluminum alloy |
| 20 | Piston Guide Pad | Engineering plastic |
| 21 | Piston Anti-Friction Ring | Engineering plastic |
| 22 | Piston Seal Ring | NBR |
| 23 | Spring Kit | Spring steel |
| 24 | Cover Seal Ring | NBR |
| 25 | End Cover | Cast aluminum with polyester coating |
| 26 | Cover Screw | 304 stainless steel |
| 27 | Locking Screw | 304 stainless steel |
| 28 | Adapter | Carbon steel |
