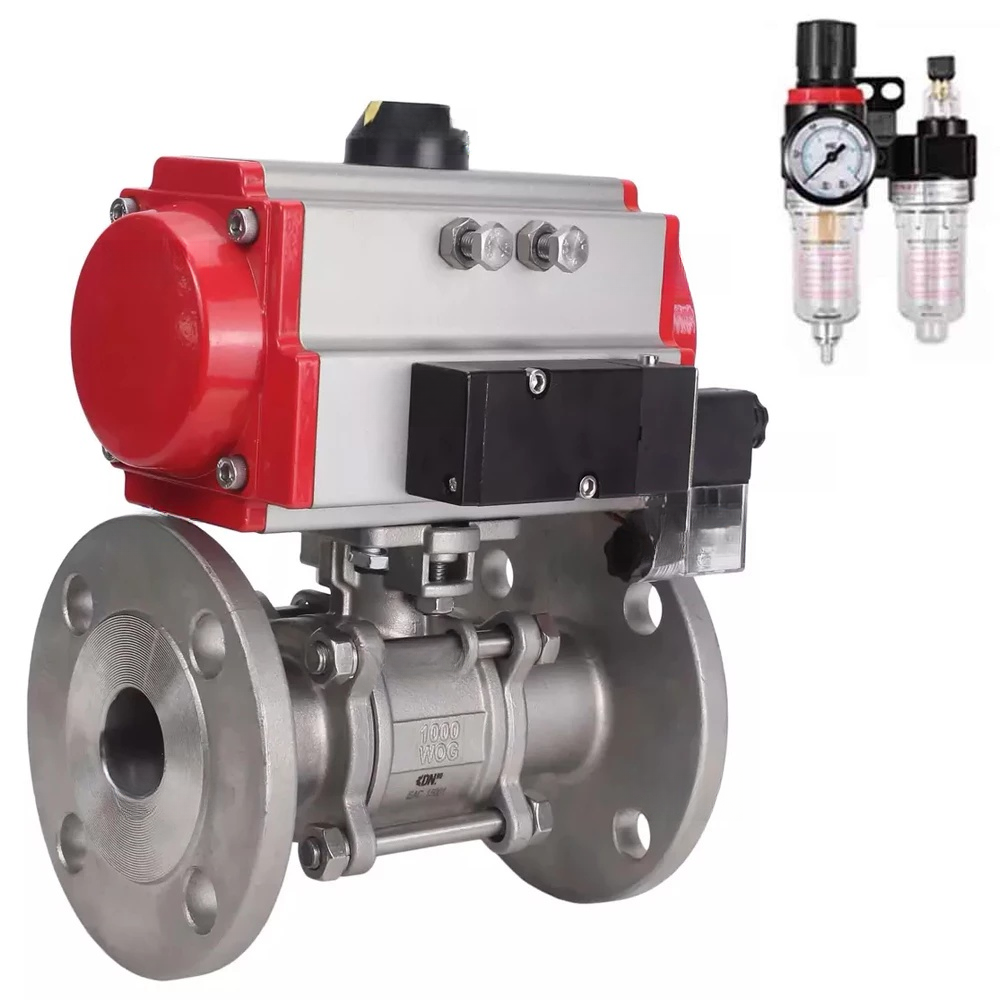

Ball valves Elephant BV3232P(3pc)-FP-F-ISO-H DN65-100 25/40 bar flanged with ISO flange, body - 316 stainless steel, full bore, seal - PTFE, with pneumatic drive PA-DA pneumatic distributor 4M310-08 220V, ATU AFC2000

The Elephant BV3232P(3pc)-FP-F-ISO-H ball valve is used as a shut-off valve in heating, water supply, steam, fuel, and compressed air and neutral gas pneumatic systems. BV3232P(3pc)-FP-F-ISO-H series valves can be installed in systems that transport liquid and gaseous media (water, steam, petroleum products, liquid media, neutral media, gaseous media) that are non-aggressive to the valve materials.

The Elephant PA-DA pneumatic actuator is designed to automate the control process of industrial shut-off valves - gate valves, ball valves. Elephant pneumatic actuators are designed for indoor and outdoor use. All internal and external parts have an anti-corrosion coating.

The Elephant 4M310-08 220V pneumatic distributor is used to change the direction, start, and stop compressed air flows in a pneumatic system depending on external control signals.

Technical parameters of the ball valve Elephant BV3232P(3pc)-FP-F-ISO-H

Dimensions and sizes of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H

Ball valve sketch Elephant BV3232P(3pc)-FP-F-ISO-H

Table of ball valve parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H

Sketch of crane parts and materials Elephant BV3232P(3pc)-FP-F-ISO-H

Technical parameters of the PA-DA pneumatic actuator

Table of parts and materials for PA-DA pneumatic actuator

Technical parameters of the Elephant 4M310-08 220V pneumatic distributor

Main parameters of the Elephant AFC2000 air preparation unit

Working pressure - 8 bar
Maximum pressure - 10 bar
Adjustable pressure range - 0.5 ÷ 9 bar
Burst pressure - 15 bar
Air connection - 1/4"
Operating temperature - from -5 to +60 °C
Filtered particle size - 40 μm
Oil viscosity - ISO VG 32
Weight - 0.395 kg
Kit contents - filter-moisture separator, pressure regulator, lubricator, bracket

Sketch of Elephant AFC2000
