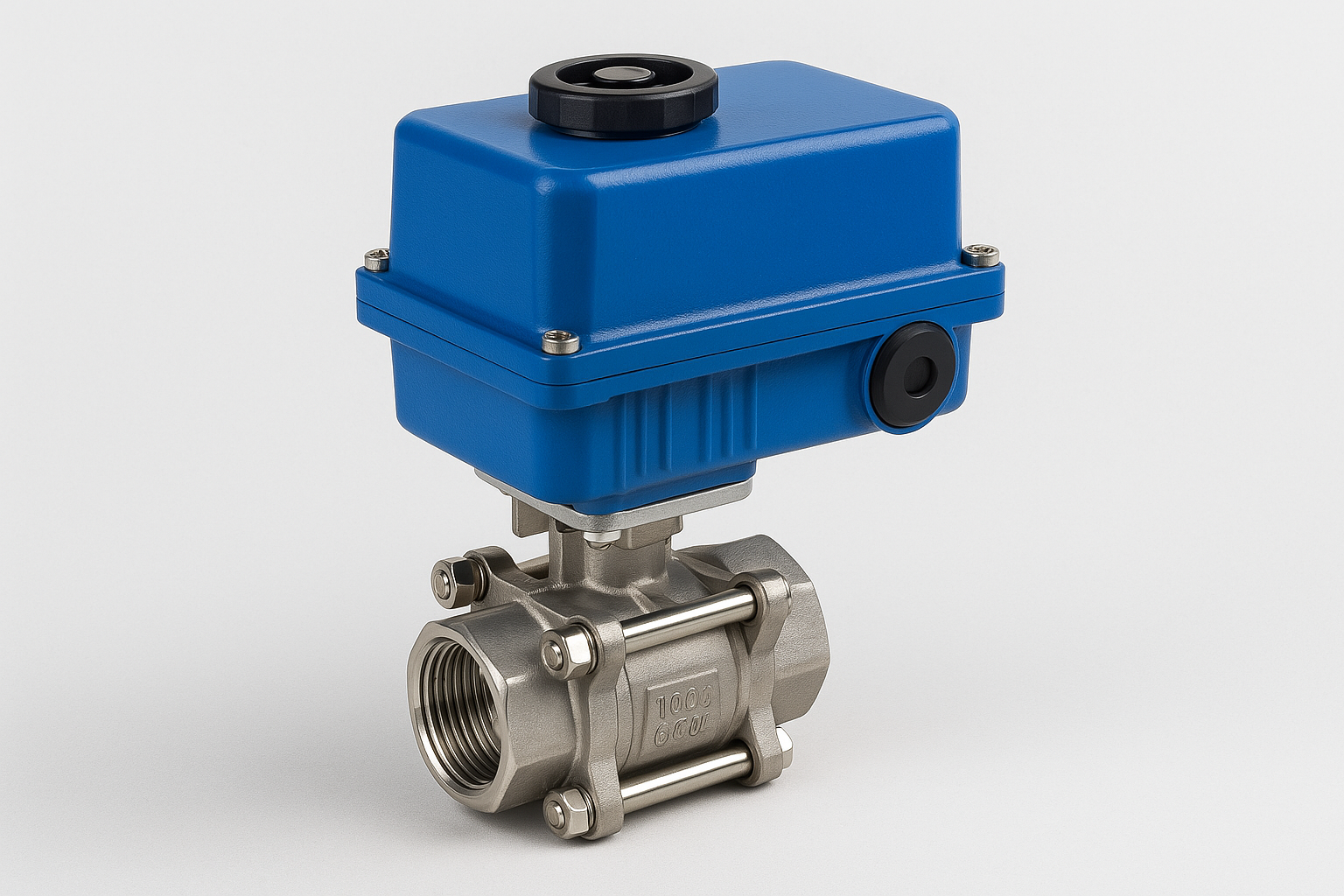

1. What Is an Electric Actuator?
An electric actuator is a device that converts electrical energy into mechanical torque to open, close, or modulate a valve. It replaces manual operation with automated control, which can be triggered remotely or programmed via control systems like PLCs or SCADA.
They can be used with a variety of valve types, including ball valves, butterfly valves, gate valves, and globe valves.
2. Main Advantages of Electric Actuators
Precision and Control
Electric actuators allow for highly accurate valve positioning — down to fractions of a degree. This is critical in applications requiring fine flow control, such as dosing systems or batch processes in chemical and pharmaceutical industries.
Remote and Automated Operation
With electric actuators, valves can be operated remotely via a control panel or a centralized system. This increases safety (by keeping operators away from hazardous areas) and efficiency (by integrating valve control into automated sequences).
Integration with Smart Systems
Electric actuators are compatible with modern digital systems, including Modbus, Profibus, and Ethernet/IP. This allows for real-time monitoring, diagnostics, and predictive maintenance — minimizing downtime.
Energy Efficiency
Unlike pneumatic actuators that require constant air supply, electric actuators consume energy only during movement. This makes them ideal for applications where energy savings and environmental concerns are priorities.
Simple Installation and Maintenance
Electric actuators are generally easier to install and maintain than pneumatic or hydraulic options. They don’t require compressors, hoses, or complex hydraulic circuits — just a power source and control signal.
Low Noise Levels
Electric actuators operate much more quietly than pneumatic systems. This can be critical in environments such as hospitals, laboratories, or commercial buildings.
3. Key Industrial Applications
- Water & Wastewater Treatment: Automating flow control for clean and efficient operations.
- Oil & Gas: Remote operation in dangerous or hard-to-access environments.
- HVAC Systems: Controlling heating/cooling valves with precision and scheduling.
- Power Plants: Fine control of steam or cooling systems.
- Pharmaceutical and Food Production: Hygienic, accurate, and consistent flow management.
4. Types of Electric Actuators
- On/Off Actuators: Fully open or fully close the valve. Ideal for isolation applications.
- Modulating Actuators: Provide precise intermediate positions for throttling or flow regulation.
- Multi-turn Actuators: Used for valves that require multiple turns to open/close, like gate or globe valves.
- Quarter-turn Actuators: Designed for ball, plug, or butterfly valves, requiring a 90° rotation.
5. Key Selection Parameters
When selecting an electric actuator, consider:
- Torque Requirement: Must match or exceed the valve’s operating torque.
- Power Supply: Common options are 24V DC, 110V/220V AC.
- Control Signal: Options include 4–20mA, 0–10V, or digital protocols.
- Duty Cycle: Choose a model that supports the frequency of operation.
- Environmental Protection: Look for IP ratings for dust/water protection, or explosion-proof designs.
- Fail-Safe Options: Battery backup or spring-return for emergency shutdowns.
6. Comparison with Pneumatic and Hydraulic Actuators
| Feature | Electric Actuator | Pneumatic Actuator | Hydraulic Actuator |
|---|---|---|---|
| Power Source | Electricity | Compressed Air | Hydraulic Fluid |
| Energy Consumption | Only when operating | Constant air pressure | Constant pressure |
| Maintenance | Low | Moderate | High |
| Control Precision | High | Moderate | Moderate to High |
| Noise | Very Low | High | Moderate |
| Installation | Simple | Requires air lines | Requires hydraulic system |
7. Common Mistakes to Avoid
- Undersizing: Using an actuator with insufficient torque may cause failure under pressure.
- Wrong Control Signal: Ensure compatibility with your existing control system.
- Ignoring Duty Cycle: Not all actuators can operate continuously or frequently.
- Improper Enclosure Rating: Using non-weatherproof actuators outdoors can lead to damage.
8. Maintenance and Longevity
Although electric actuators require less maintenance than their pneumatic or hydraulic counterparts, regular inspections are still essential:
- Check electrical connections.
- Monitor for overheating.
- Perform periodic torque testing.
- Inspect actuator seals and housing for signs of corrosion or damage.
With proper care, electric actuators can last over a decade in demanding industrial environments.
9. Future of Valve Automation: Smart Actuators
As Industry 4.0 becomes the standard, smart actuators with built-in diagnostics, wireless communication, and self-calibration are becoming more common. These devices can detect wear, predict failure, and notify operators before an issue occurs.
10. Conclusion
Electric actuators offer unmatched precision, integration, and efficiency in modern valve automation. Whether you're upgrading a legacy system or designing a new one, electric actuation provides the flexibility and performance needed to meet today’s demanding industrial standards.
From safety to cost savings, from control to remote access — the benefits are clear. Make the switch, and your systems will thank you.
